Flyhawk 1/700 HMS Naiad (93) Global Ltd. Run
Knuckles
_VISITCOMMUNITY
Oregon, United States
Joined: March 09, 2017
KitMaker: 525 posts
AeroScale: 52 posts
Posted: Saturday, March 25, 2017 - 01:19 AM UTC
The MHS Naiad (93) was a Dido-class light cruiser that served in WW2. The Didos were mainly named after Greek and Roman mythology, and the Naiad gained hers from a Greek fairy representing lakes, streams, and water. Her keel was laid down in Hebburn-on-Tyne in the UK on August 26, 1937. She launched on February 2nd of 1939 and after sea trials was commissioned by the Royal Navy on July 24, 1940. She displaced 5,450 tons, was 512 feet in length, and carried a compliment of about 560 men. With her four boilers and shafts, she cruised at 33 knots.

In the beginning of her career, she performed convoy escort duties, and spent some time in the Mediterranean. On the 11th of March, 1942 while steaming North of Crete, at approximately 19:58 hours, the Type VII C German U-Boat U-565 lay submerged off of her starboard bow and fired a spread of three torpedoes from a distance of approximately 1,000 meters. The Naiad crew watched one torpedo go in front of the ship, and another behind. The 3rd torpedo struck dead amidships on the starboard side. The explosion split her bulkheads and she immediately listed hard to starboard. Captain Grantham gave the “abandon ship” order and 35 minutes after the impact, the Naiad rolled to starboard, capsized, and sank by the stern just North of Sidi Barrani, Egypt. She took 77 souls with her. Her 582 survivors were plucked from the dark sea by her accompanying fleet. U-565 quietly slipped away, escaping the depth charge screen that was set by the Naiad's escorts.


In December 2016 Flyhawk Model released a Global Limited Edition 1/700 kit of this proud ship. Kit # FH 1112S comes packaged in an attractive and sturdy box, complete with a banner advertising the limited run of 1000 kits and bonus parts included within (and trust me, there are a lot of bonus parts).


Upon opening the shipping packaging, I was greeted with a throwback to my youth. The product box is made to display the model when completed. There is a perforated cut-out on the front of the box, and then a sea-scape to fold and rest your ship on. Also, inside is a very nice card stock print of the cover art, complete with details of the ship on the reverse.

Kit # 876 : 1000

Inside the box is another plain brown cardboard box full of parts. There’s also a small clear plastic container that carefully protect the four, finely cast masts, two sheets of PE parts on a card, supplementary instructions for the PE, some Uschi rigging line, and a smaller box full of tiny metal parts.

A nice piece of cardstock art for your shop wall.

Opening the inner box, I discovered more PE parts, a small decal sheet with ensigns on it, a keel weight, instructions, and six bags of plastic frets. There’s also another clear plastic box containing slide molded superstructure pieces.

The instructions are very well done.

There are two long, glossy pages of instructions printed in color, with excellent detail. Considering the small scale of this kit, clear and concise guidance is invaluable. The painting guide calls out Mr. Hobby, and Tamiya colors (along with something in Mandarin). Again, the color references make this an indispensable piece of the build.

Uschi rigging bobbin included!

Moving into the PE, the standard kit has the one PE card featuring the railings, anchor chains, and some fittings. The bonus pieces are two more PE cards with some of the smallest pieces I’ve ever seen. There’s an instruction sheet included with the bonus PE that shows more color diagrams, and some actual color photos of the parts used on the model. This is of great help, and serves to constantly remind me of how much better I can be at bending my PE.



Loupe not included*

Continuing on to the box containing the metal parts, there are six small zip bags in the box. Each bag contains metal detail parts for a specific portion of the ship. They include depth charges and gun barrels that are so small that if you ping one of them into oblivion there will be zero chance of recovery. Extra care must be taken at all times when handling these pieces, as simply exhaling would be enough to cause them to devoured by the Carpet Monster. There are 46 metal pieces included in this box in total. A jeweler’s loupe is not included, but should be a requirement for this portion of the build.



These depth charges are about the size of a grain of coarse sand.

The gun barrels are bored. Incredible.

Looking at the masts, there are four of them (plus a spar) contained in the protective box. They are some of the finest molding I have seen. Looking at them with magnification, there is nary a seam line to be seen. Trimming the gates will be the most challenging portion of these — well of course, then the rigging afterwards.

Masts.

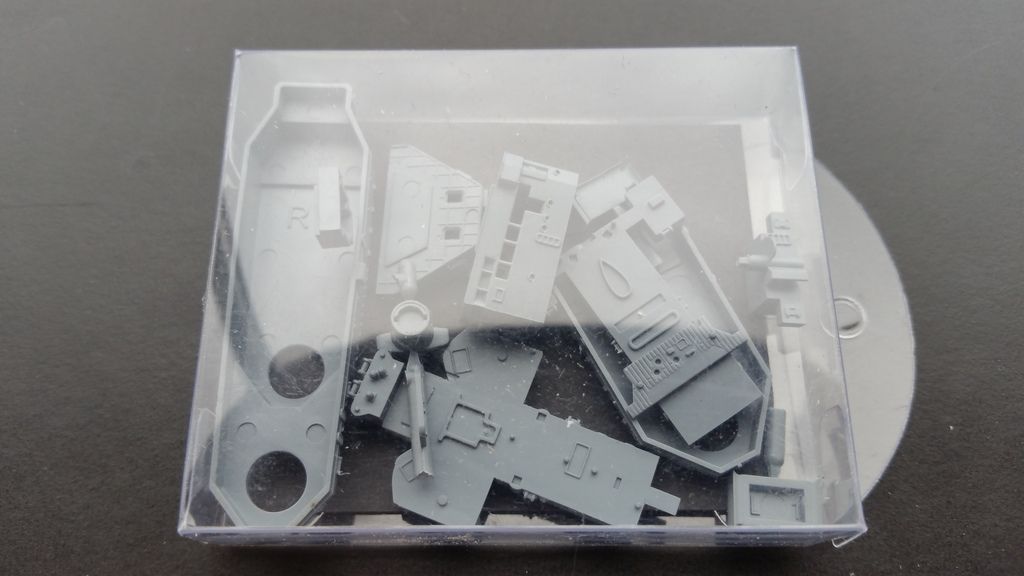

The last box-in-a-box houses the superstructure. There are ten parts, and again the molding is incredible. Zero clean-up required. Those open windows almost make me want to add some LEDs…

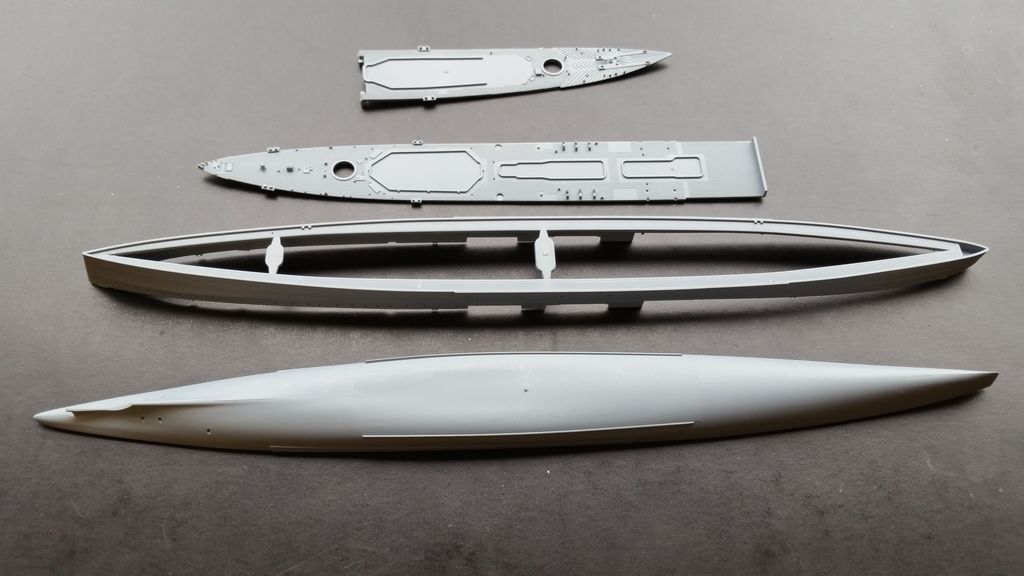

Moving on to the plastic-bits in the bags, let’s start with the hull. It is packaged in a bag that contains the main deck pieces (2) and the two-part hull—which is rubber-banded together. This model is also able to be displayed as a waterline kit, so the hull is split at the waterline. It is well cast, and the joint between the two halves appears near-perfect. I doubt any filler will be required along this seam. I will more likely than not drill out the tiny portholes and scuppers along the sides.

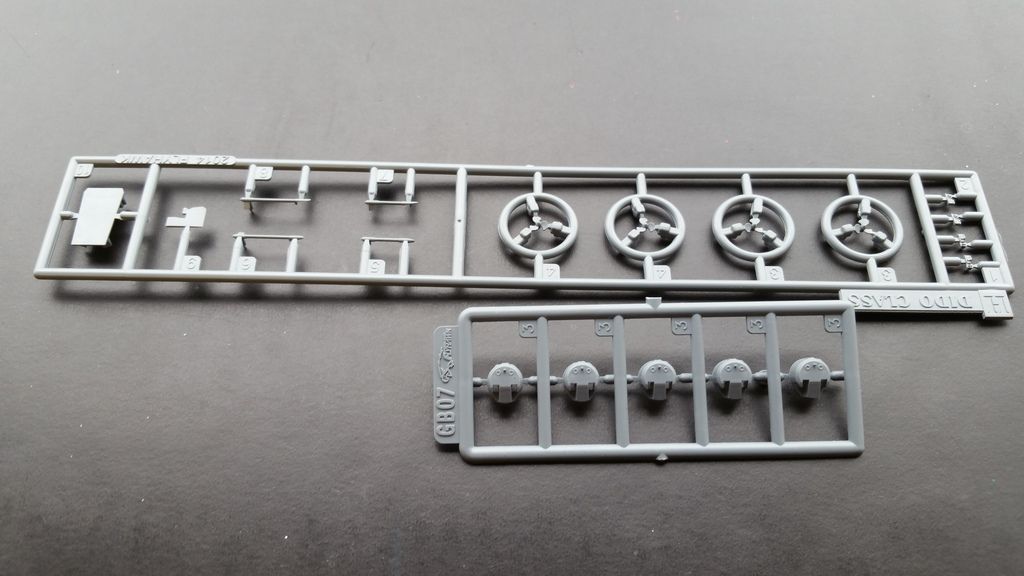

I was expecting the props to be PE, but in this kit they are molded on a sprue. There is no notable flash, and the detail is superlative. I am beginning to see a trend with this kit of trimming the gates carefully, and will be going through a number of new blades on my X-Acto knife.



There are several small frets of plastic that have gun barrels, and other small bits that I see replaced by the PE parts. Even so, the plastic is remarkable — look at the detail on those rafts!



Another bag contains frets that have the lifeboats and some additional gun barrels. The detail on the small boats is insane. I’ve built 1/700 kits that had lifeboats that were a crudely shaped wedge of plastic. These have decks and planking, and they’re roughly the size of a grain of rice!


A fret that came in a zip bag contains the single-piece stacks, davits, and more incredibly tiny pieces. There goes another #11 blade.


The last sprue is on a card, and sealed in a bag. It contains all the guns, some life rafts, and other incredibly small, and detailed parts. The search lights and signal lamps in particular have incredible cast detail.


If you want to get one of these kits yourself, I cannot recommend it enough. The level of detail is far and beyond anything I have seen before. The plastic appears to be of great quality, and the fittings included make this an out-of-the-box masterpiece with no need for aftermarket parts (OK, I bought a deck mask). The MSRP is listed at $68.95, and you can find them for about $50 (US) shipped from overseas. Thank you to Flyhawk Models for providing the kit for us, and to KMN for issuing this kit to me for review.

I have chosen to paint her as she served in the final days of her war. She wore a three-color wartime camouflage scheme of light grey (XF-19:2 + XF-2:10 + XF-78:1), 1940 Brown (XF-64), and 1940 Green (XF-5:2 + XF-2:5). Her decks were washed natural teak, and she was a little weary from being at sea for more than 10 months. She endured many bombing attacks by the Luftwaffe, and was severely damaged in one attack near Crete in mid-1941.

I’ll be building her for static display on a teak base, secured by a brass rod. Underneath her, lurking, will be a 1/700 Hobby Boss Type VII C U-boat representing U-565, also in her wartime camouflage.


Stay tuned for the build and thanks for looking!



RedDuster
_VISITCOMMUNITY
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 6,856 posts
AeroScale: 118 posts
Posted: Saturday, March 25, 2017 - 01:25 AM UTC
Hi Christian,

Great looking kits, my eyes aren't up to 1/700th any more, but will be following along for the ride,

Cheers

Si
Knuckles
_VISITCOMMUNITY
Oregon, United States
Joined: March 09, 2017
KitMaker: 525 posts
AeroScale: 52 posts
Posted: Saturday, March 25, 2017 - 01:36 AM UTC

Quoted Text

Hi Christian,

Great looking kits, my eyes aren't up to 1/700th any more, but will be following along for the ride,

Cheers

Si


I just bought an Optivisor to help mine
TRM5150
Staff MemberEditor-in-Chief
MODEL SHIPWRIGHTS
_VISITCOMMUNITY
Massachusetts, United States
Joined: January 03, 2010
KitMaker: 2,159 posts
AeroScale: 4 posts
Posted: Saturday, March 25, 2017 - 04:02 AM UTC
Very Exciting!! Looking forward to seeing you dig into this one Christian! The Premium Edition looks fantastic...thanks for the review at the outset! You might need a microscope with those brass bollards..LOL Enjoy!!
Knuckles
_VISITCOMMUNITY
Oregon, United States
Joined: March 09, 2017
KitMaker: 525 posts
AeroScale: 52 posts
Posted: Sunday, March 26, 2017 - 09:32 PM UTC
Here's the mask I picked up for the deck. I got the Hunter mask, and it shipped from China. Took about 10 days to get here and cost me $23. It ought to help get some nice, clean lines.


I considered getting the wooden deck AM upgrade for this kit, but after seeing the molding detail, I opted to keep it stock.

Keel will be laid down this week.
Knuckles
_VISITCOMMUNITY
Oregon, United States
Joined: March 09, 2017
KitMaker: 525 posts
AeroScale: 52 posts
Posted: Wednesday, April 05, 2017 - 09:53 PM UTC
I laid down her hull last night. I used Tamiya Extra Thin for the hull, and glued down the ballast (along with a tungsten ball) with Elmer's white glue. I wiped down the decks with alcohol and sprayed a very light coat of Model Master Acryl Wood down. I chose not to use a primer as I felt it would muddy up the delicate detail of this model.

The base coat is drying while I'm driving my desk at work today, and when I get home I'll wash it with a burnt umber 502 oil and let that dry for a few days--then the deck masks will go on. While I'm waiting for the oil wash to dry, I'll begin assembly of the hull components. There's enough ancillary equipment on this boat, that there will not be any gaps in the building process--always something else to glue and wait for, or pre-paint and wait for, etc.

Here's the keel shot:

RedDuster
_VISITCOMMUNITY
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 6,856 posts
AeroScale: 118 posts
Posted: Wednesday, April 05, 2017 - 11:13 PM UTC
Hi Christian,

The masks certainly look interesting, will be watching there use with interest.

Congrats on keel laying.

Looking forward to seeing more progress.

Cheers

Si
RussellE
#306
_VISITCOMMUNITY
Victoria, Australia
Joined: June 27, 2010
KitMaker: 3,623 posts
AeroScale: 488 posts
Posted: Thursday, April 06, 2017 - 04:34 AM UTC
Oh man! I'm with Todd on this one Christian: you might need a microscope!

Those masts look so fine, they look like they need rigging with spider web
Knuckles
_VISITCOMMUNITY
Oregon, United States
Joined: March 09, 2017
KitMaker: 525 posts
AeroScale: 52 posts
Posted: Thursday, April 06, 2017 - 04:42 AM UTC
Pretty sure those eyebrow portholes might drive me into a brief psychotic episode.
RussellE
#306
_VISITCOMMUNITY
Victoria, Australia
Joined: June 27, 2010
KitMaker: 3,623 posts
AeroScale: 488 posts
Posted: Sunday, April 09, 2017 - 02:46 AM UTC

Quoted Text

Pretty sure those eyebrow portholes might drive me into a brief psychotic episode.



I reckon you may just end up with eyes like your profile pic
