Building a 1/9 Kettenkrad
Mendes
_VISITCOMMUNITY
Parana, Brazil
Joined: April 19, 2012
KitMaker: 182 posts
AeroScale: 1 posts
Posted: Friday, April 04, 2014 - 01:36 AM UTC
Gentlemen, this project involves the Kettenkrad, scale 1/9, from Revell.

The interior was rebuilt as the early model. The kit is very bad, so I had to rebuilt the whole engine, pulleys, timing belt (with serial number), gearbox, exhaust system (with movable door) and many other itens.

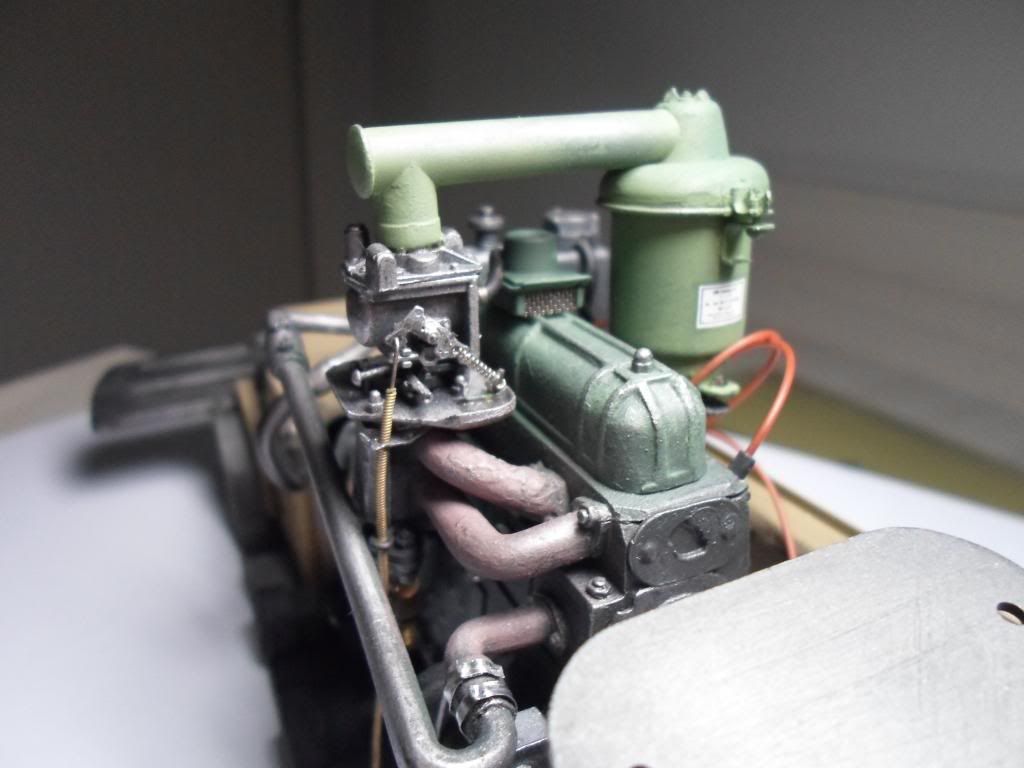

The engine is a 1748cc Opel Olympia, the carburetor is the trademark SOLEX and radiator is of the trademark WERKEL. I also made the whole system of torsion bars.

Well, over 500 pieces were made...

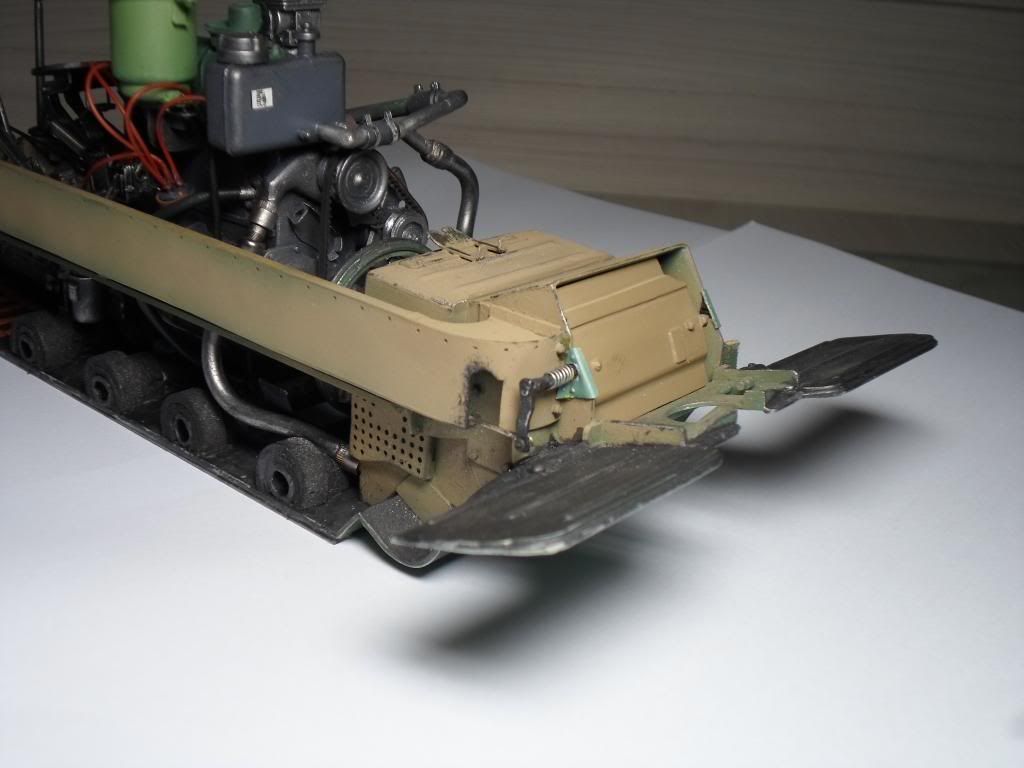

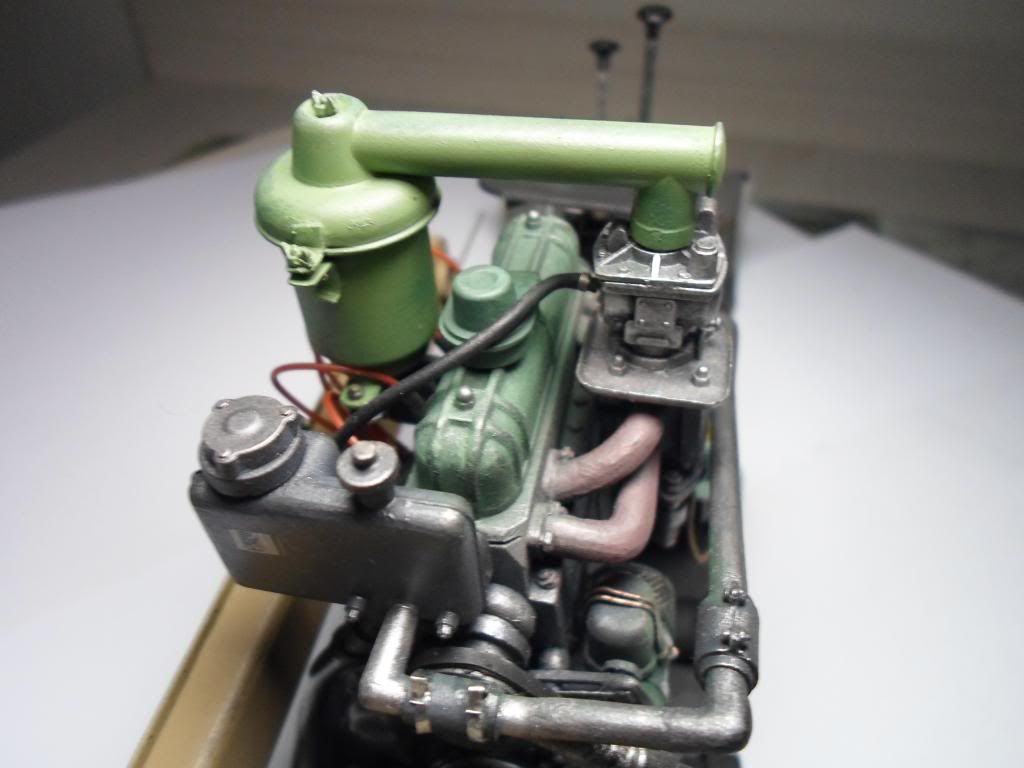

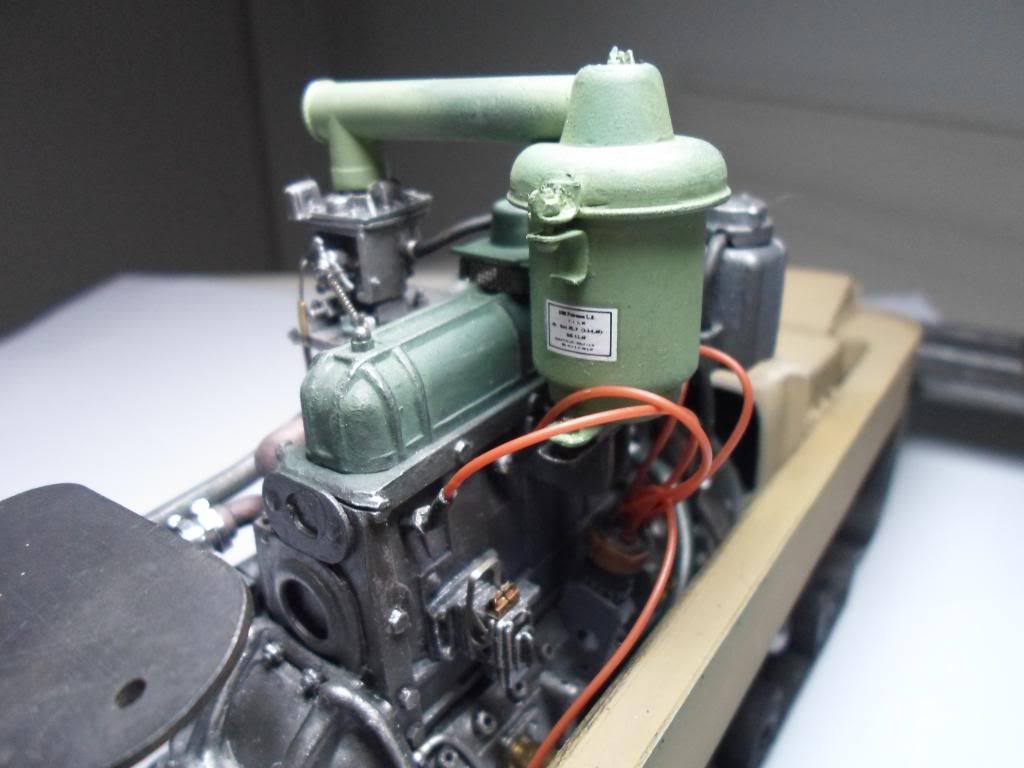

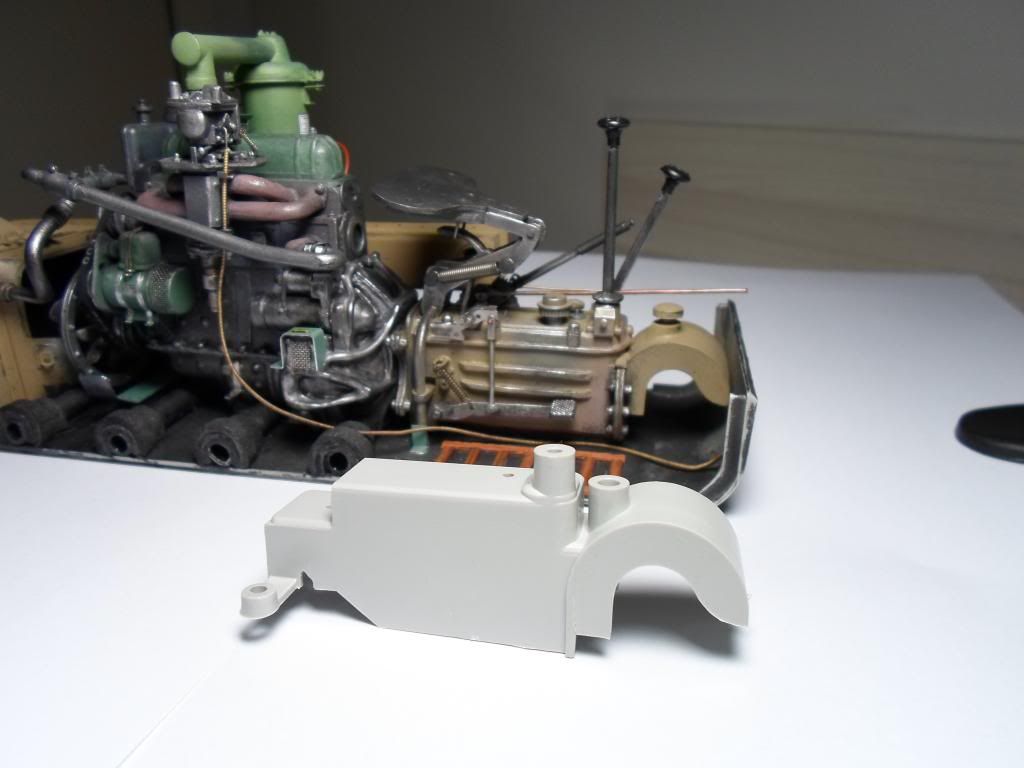

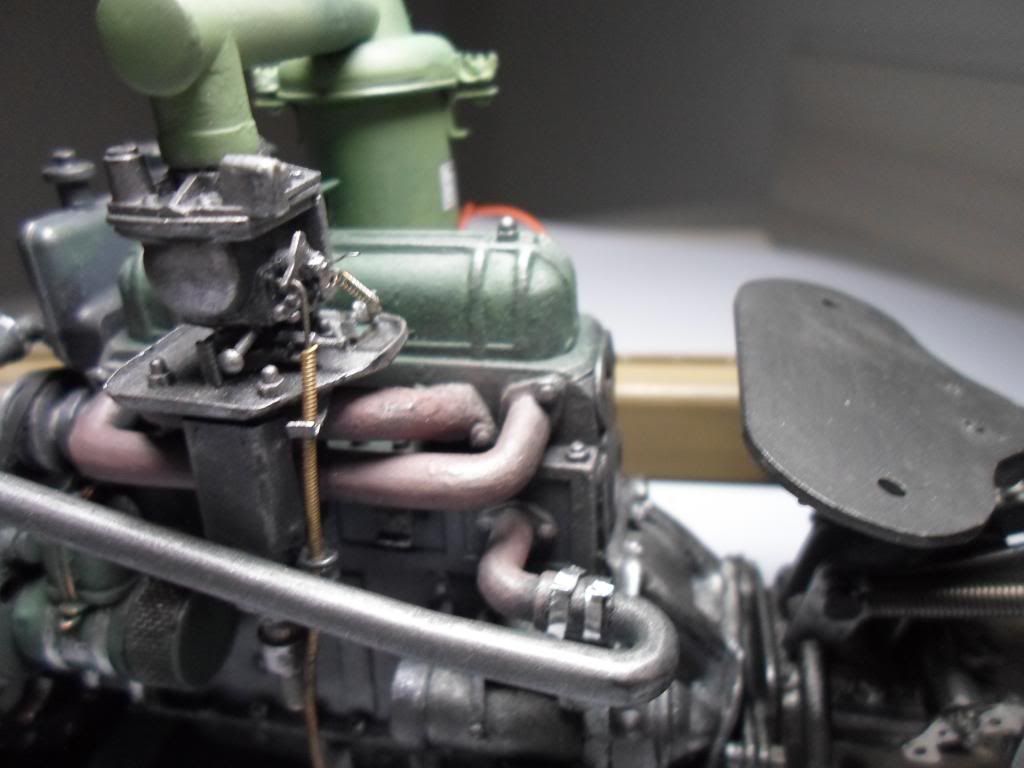

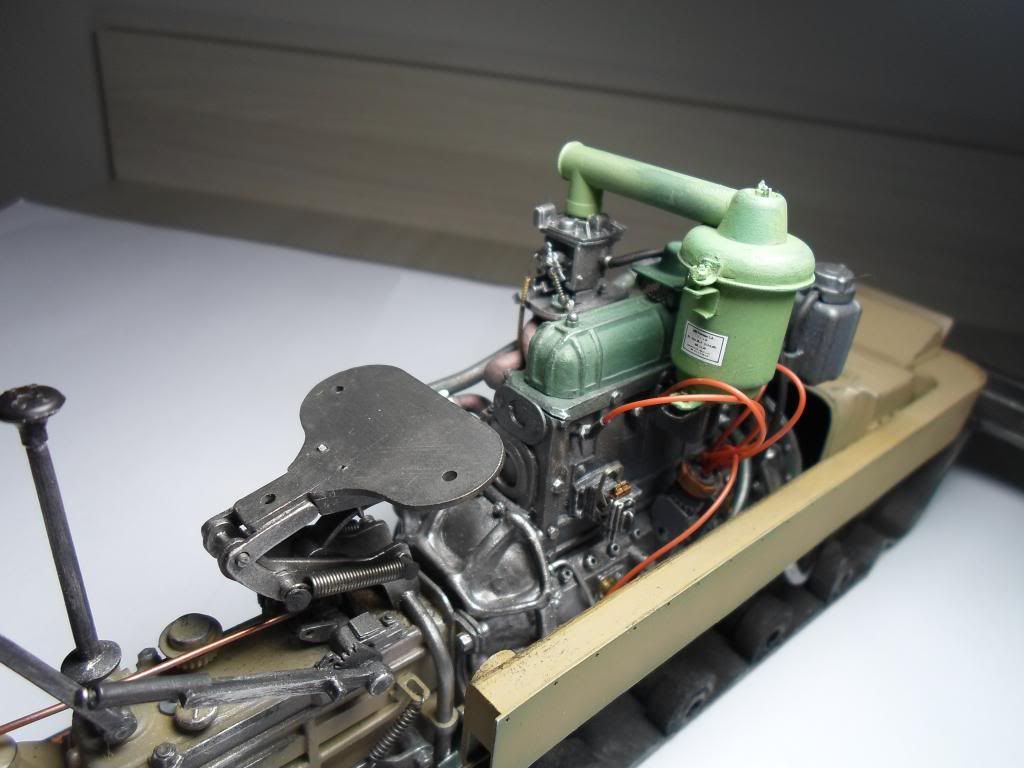

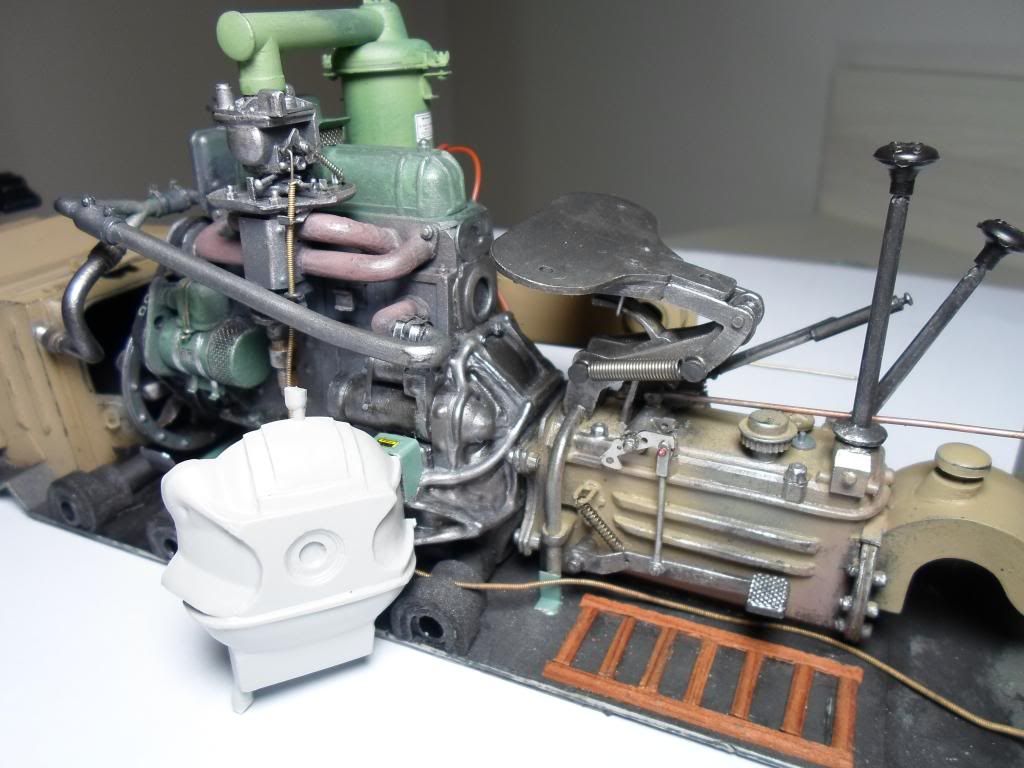

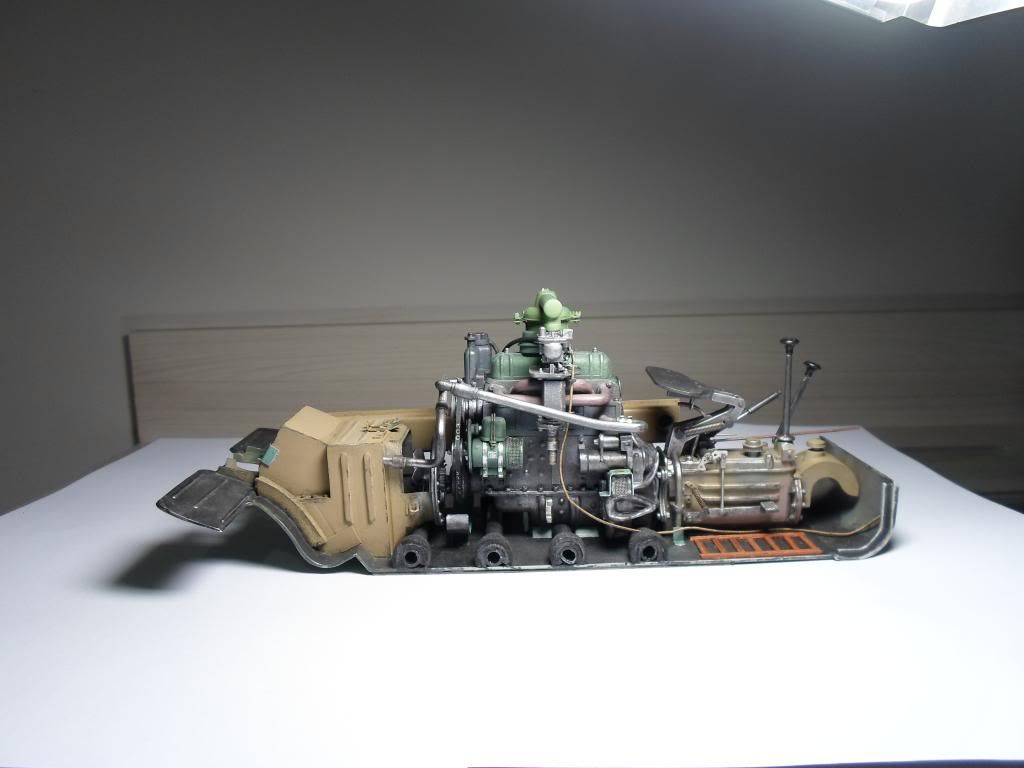

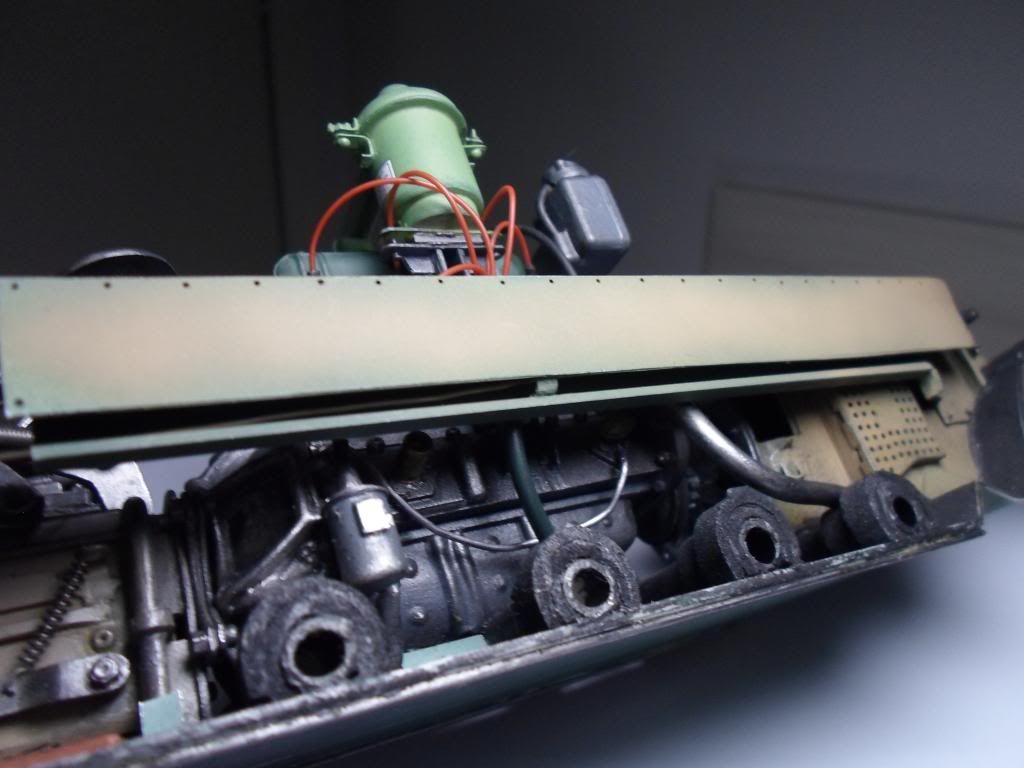

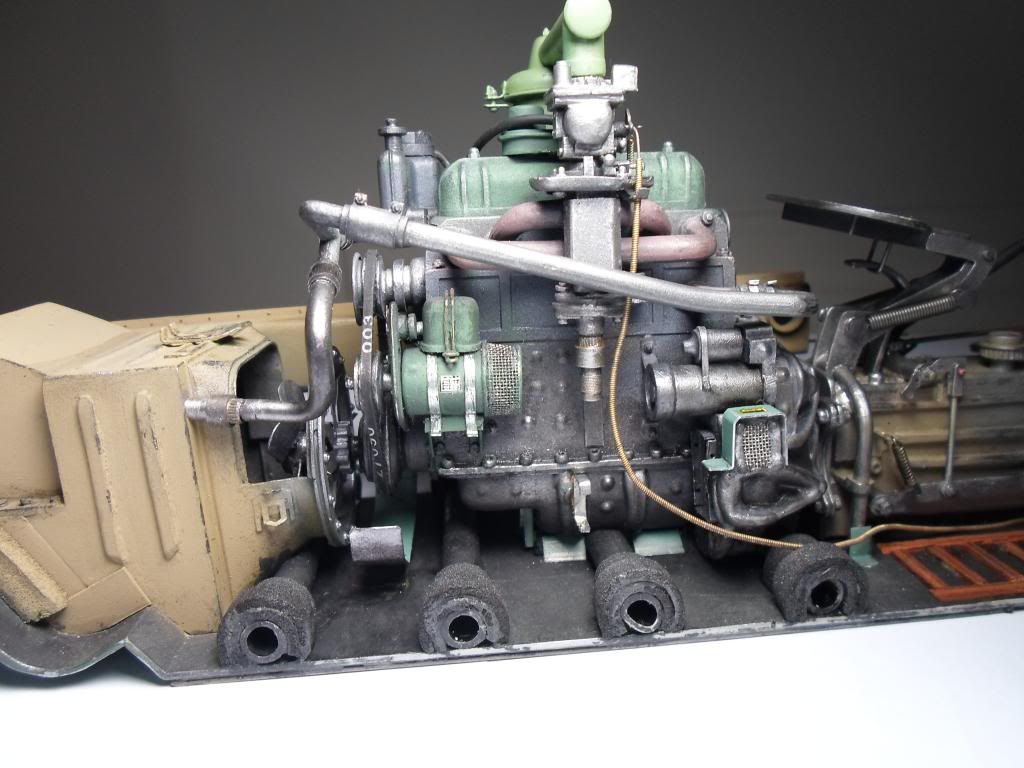

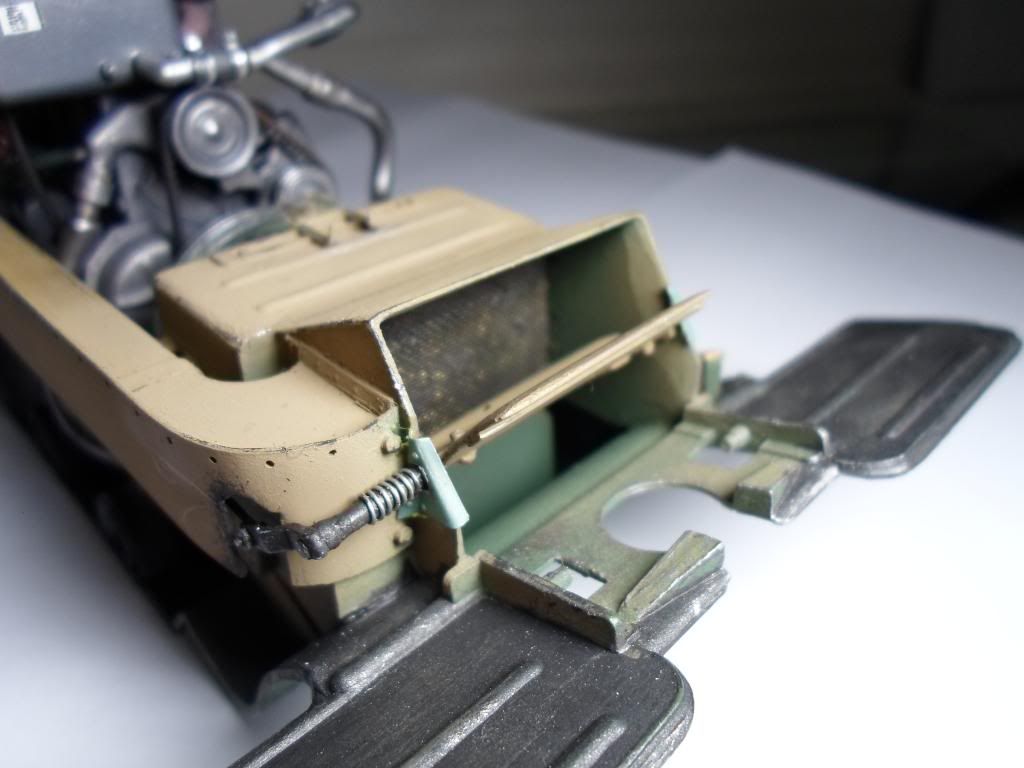

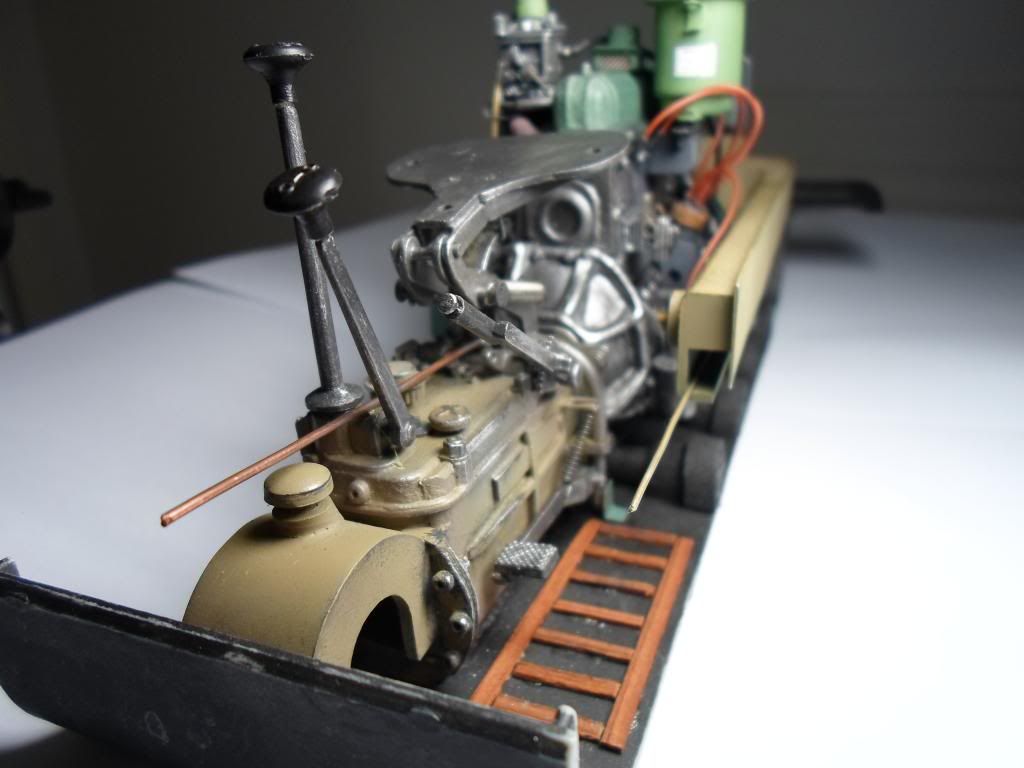

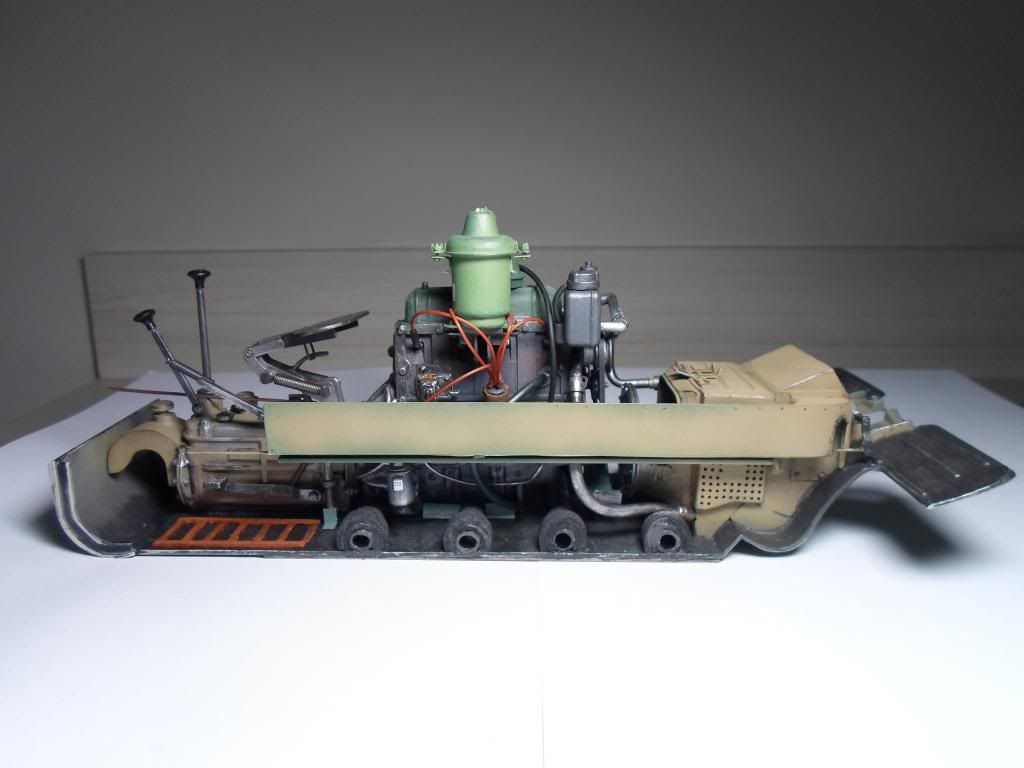

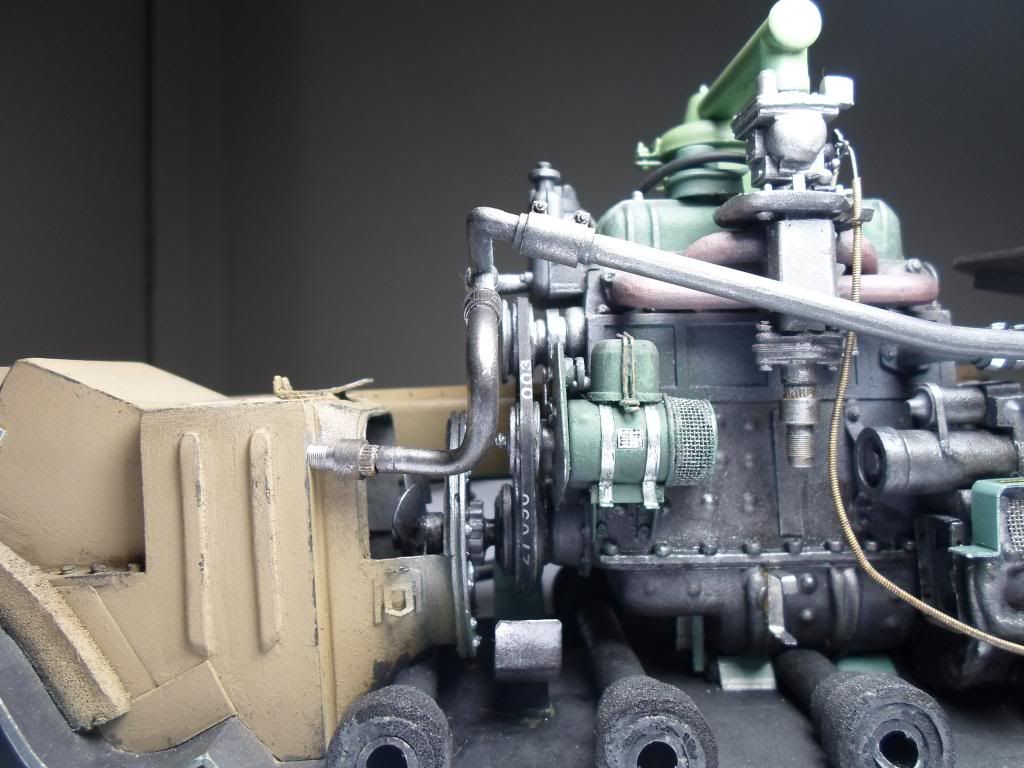

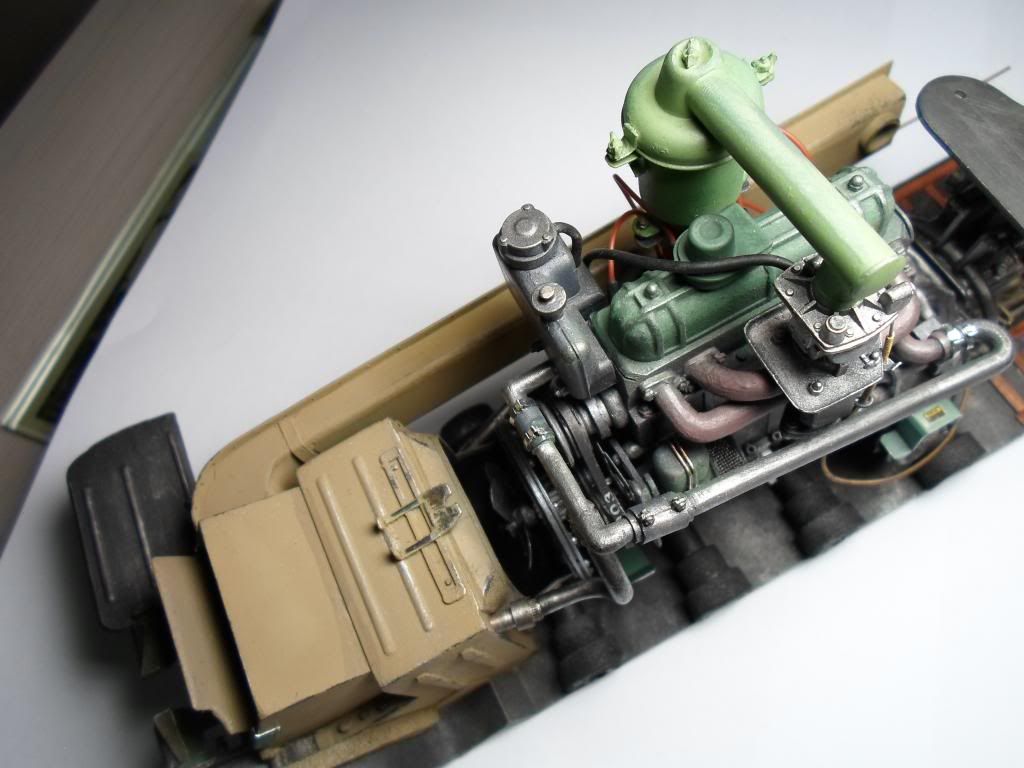

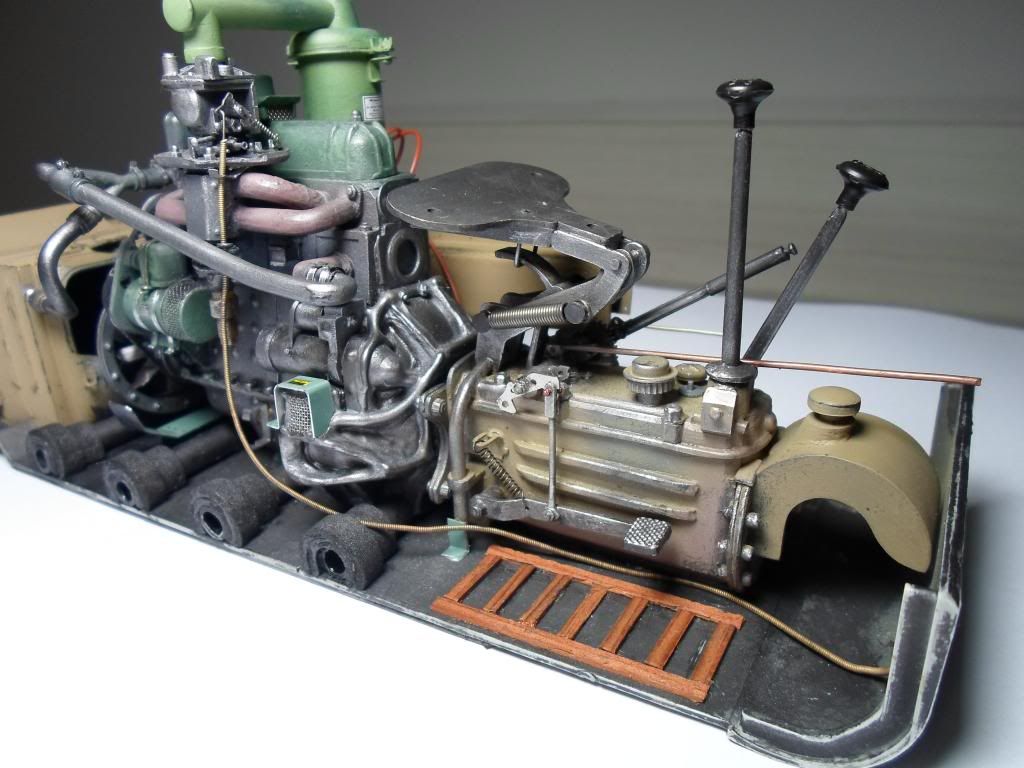

Photos:










































thebear
_VISITCOMMUNITY
Quebec, Canada
Joined: November 15, 2002
KitMaker: 3,960 posts
AeroScale: 0 posts
Posted: Friday, April 04, 2014 - 08:13 AM UTC
Hi Cesar... Wow that is some really nice work .. Man, that kit is old . It first came out as an Esci release wayyyy back when I first started modelling and I remember reading in an old Military Modeller magazine that it was not an easy kit to build .. I guess things haven't changed and you are really doing a great job.. Good luck and keep us all updated.. I'll be watching.

Rick
Mendes
_VISITCOMMUNITY
Parana, Brazil
Joined: April 19, 2012
KitMaker: 182 posts
AeroScale: 1 posts
Posted: Saturday, April 05, 2014 - 12:49 AM UTC
Hi Rick,

Thanks for your visit and comment. Truly this kit is very old and has many errors, especially in the interior. It is a mix of initial and final version. I chose to make the initial version.

I appreciate your interest and I am glad you enjoyed.

Cheers
