Russian MAZ 537 question...
Willydav
_VISITCOMMUNITY
Milano, Italy
Joined: January 07, 2006
KitMaker: 18 posts
AeroScale: 0 posts
Posted: Sunday, January 01, 2017 - 05:07 AM UTC
Yes, this was the thread
Thanks
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Sunday, January 01, 2017 - 08:15 PM UTC
Speaking of the fan drive system, check out page 13.
Dragon164
#226
_VISITCOMMUNITY
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,909 posts
AeroScale: 508 posts
Posted: Monday, January 02, 2017 - 04:39 AM UTC
I was looking at that and can't see how the whole thing is driven.

Cheers Rob.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Monday, January 02, 2017 - 05:39 AM UTC
Driveshafts come off the left and right sides of the overdrive unit just below the air compressor that drive the fans,

Dragon164
#226
_VISITCOMMUNITY
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,909 posts
AeroScale: 508 posts
Posted: Monday, January 02, 2017 - 08:16 AM UTC
There is still some linkage not shown.

Cheers Rob.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Monday, January 02, 2017 - 08:56 AM UTC
Admittedly you have to study the photos closely on pages 12, 13 & 14 of the website covering the paper model. Eventually you will see that two driveshafts come out the left and right sides of the overdrive unit. These go to gearboxes in the right and left rear corners of the engine sheet metal enclosure. From there two more driveshafts go forward to gearboxes in between the fans. These final gearboxes run the drive belts that actually turn the fans.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Monday, January 02, 2017 - 09:54 AM UTC

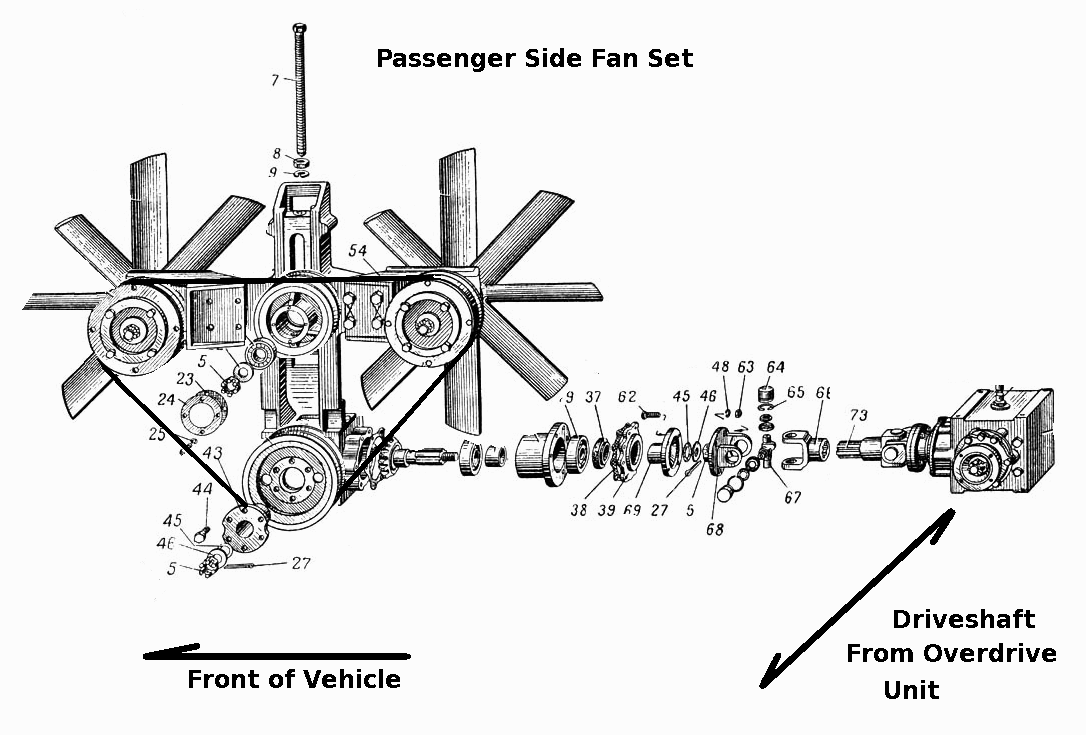

Here is a somewhat rough composite I made from an exploded drawing I found in the manual.



Top center pulley between fans is an idler pulley. Tightening jack screw #7 allows you to raise the idler pulley and thereby adjust out any slack in the fan belts.
Dragon164
#226
_VISITCOMMUNITY
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,909 posts
AeroScale: 508 posts
Posted: Monday, January 02, 2017 - 05:58 PM UTC


Cheers Rob.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, February 23, 2019 - 11:08 PM UTC
I think the differences are strictly sheet metal as has already been stated.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Monday, October 14, 2019 - 05:51 AM UTC
I believe on later models this mechanical fan drive system was replaced with a fluid (hydraulic) drive system.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Wednesday, April 15, 2020 - 05:08 AM UTC
A very nice build of that rear engine speed reducer and fan drive posted elsewhere by enrico63:

https://www.modellismopiu.net/m+gallerie/main.php?g2_view=core.DownloadItem&g2_itemId=874130
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Monday, October 26, 2020 - 06:02 AM UTC
Bump
