Russian MAZ 537 question...
pgb3476
_VISITCOMMUNITY
Texas, United States
Joined: March 11, 2007
KitMaker: 976 posts
AeroScale: 0 posts
Posted: Wednesday, January 07, 2015 - 01:12 AM UTC
That is sweet looking.
Dragon164
#226
_VISITCOMMUNITY
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,909 posts
AeroScale: 508 posts
Posted: Wednesday, January 07, 2015 - 06:13 AM UTC
Michael,
Looks like it was scratch built.

http://fzmw-militaryminiature.blogspot.ca/2012_01_01_archive.html

Cheers Rob.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Thursday, January 08, 2015 - 08:28 PM UTC
Rob, you may be right. I thought the radiators looked like resin castings and the engine definately looks like resin but the engine may have come from another source just as mine did.

Mike
Dragon164
#226
_VISITCOMMUNITY
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,909 posts
AeroScale: 508 posts
Posted: Friday, January 09, 2015 - 06:44 AM UTC
Michael,
They are resin, just that he made them himself.

Cheers Rob.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Wednesday, January 21, 2015 - 04:35 AM UTC

Photo autocentre.ua
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, January 24, 2015 - 12:36 AM UTC
How about a crane variant of the 537? I didn't know about that one!

165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, January 24, 2015 - 08:50 PM UTC
As often happens, once you find one reference on a new topic you then immediately find others:

165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, January 24, 2015 - 09:32 PM UTC
The second Disney "Cars" movie went on the International Auto Racing Circuit and involved international spies and foreign intrigue.

If only the movie had included a Russian component MAZZY here could have had a starring role!

(Illustration by S-a-p-p-e-r)
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Sunday, February 22, 2015 - 08:29 PM UTC

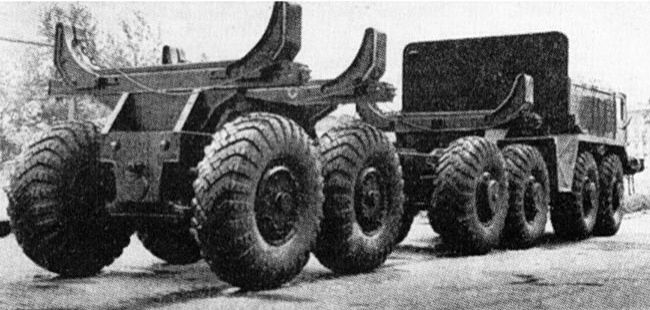

Here is a nice piece of MAZ inspiration for a partial scratch-built conversion: A bolster tractor/trailer combination. Notice the unpowered hubs on the two trailer axles. The trailer probably has a telescoping central pole that could extend to keep the trailer attached to the tractor's towing pintle regardless of the length of the load.

Used to haul long pipe sections, logs, large girders or pre-cast concrete beams. For extremely long loads the trailer section could be uncoupled and strapped directly to the load itself.

Also note the massive "headache rack" behind the cab to protect the tractor and driver from sliding loads.


___________________________________________________________________________________

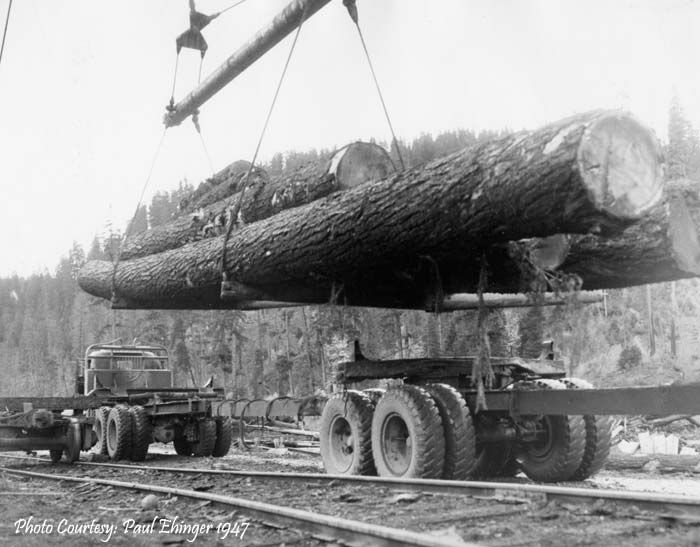

Similar US arrangement for backwoods logging:

165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Sunday, February 14, 2016 - 10:52 PM UTC

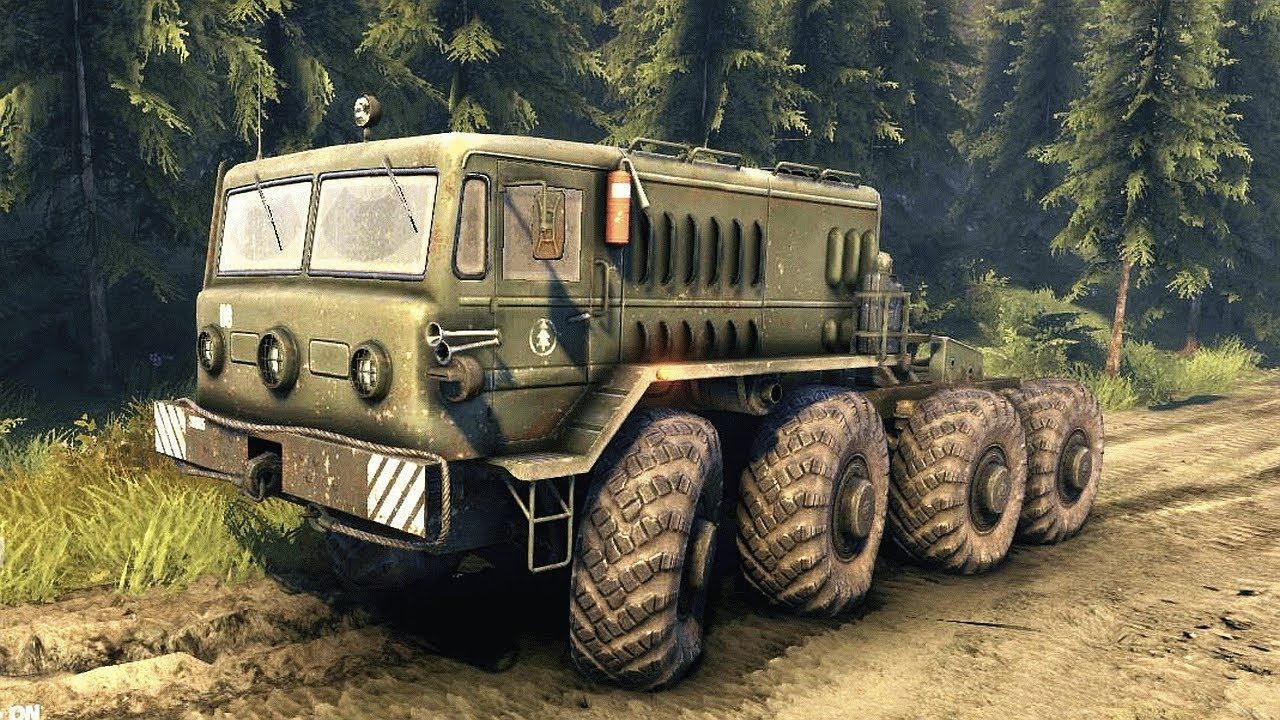

Want to test drive a 537 or 543 (at least on your computer?)

Check out a fairly recent new video game entitled "Spin Tires".




YouTube demo video at:

https://www.youtube.com/watch?v=Qv2-8IS-jfU

https://www.youtube.com/watch?v=-4gK9BCKGxw
WilliamDeCicco
#161
_VISITCOMMUNITY
New York, United States
Joined: May 03, 2010
KitMaker: 392 posts
AeroScale: 1 posts
Posted: Saturday, October 15, 2016 - 02:11 AM UTC
I'm trying to finish mine now, just trying to find the right walkarounds an i think you got those awesome sites.
Armored76
_VISITCOMMUNITY
Bayern, Germany
Joined: September 30, 2013
KitMaker: 1,615 posts
AeroScale: 51 posts
Posted: Saturday, October 15, 2016 - 10:16 AM UTC
There are two walk-arounds on Prime Portal, William in case you haven't found them already:

http://www.primeportal.net/trucks/egor_kalmykov/maz-537/
http://www.primeportal.net/trucks/gabor_fodor/maz-537/

Hope this helps!
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Thursday, November 10, 2016 - 03:01 AM UTC
Somehow I missed the announcement on this MiniArt kit!

If you want an excellent and inexpensive starting point for an engine to install in those older MAZ 537 and 543 kits then here is your chance:

165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Friday, December 30, 2016 - 07:07 AM UTC
Something just found on eBay. These are looking real good!

Armored76
_VISITCOMMUNITY
Bayern, Germany
Joined: September 30, 2013
KitMaker: 1,615 posts
AeroScale: 51 posts
Posted: Friday, December 30, 2016 - 11:06 AM UTC
Would any of you knowledgeable masters venture into describing the changes required by the T-34 engine to make it a MAZ one?
Willydav
_VISITCOMMUNITY
Milano, Italy
Joined: January 07, 2006
KitMaker: 18 posts
AeroScale: 0 posts
Posted: Friday, December 30, 2016 - 01:01 PM UTC
Hi
Have a look to www.modellismopiu.it and watch the papermodel Maz537G + ChMZAP scratchbuilded by Enrico63 (E63). The thread is the longest thread in the forum, easy to find out.

It's a truly masterpiece !

Cheers
Alberto
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 09:35 AM UTC
Alberto could you please give us the direct link to the post you are referring too. I cannot seem to find the topic you are calling our attention to amongst that large website.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 10:21 AM UTC

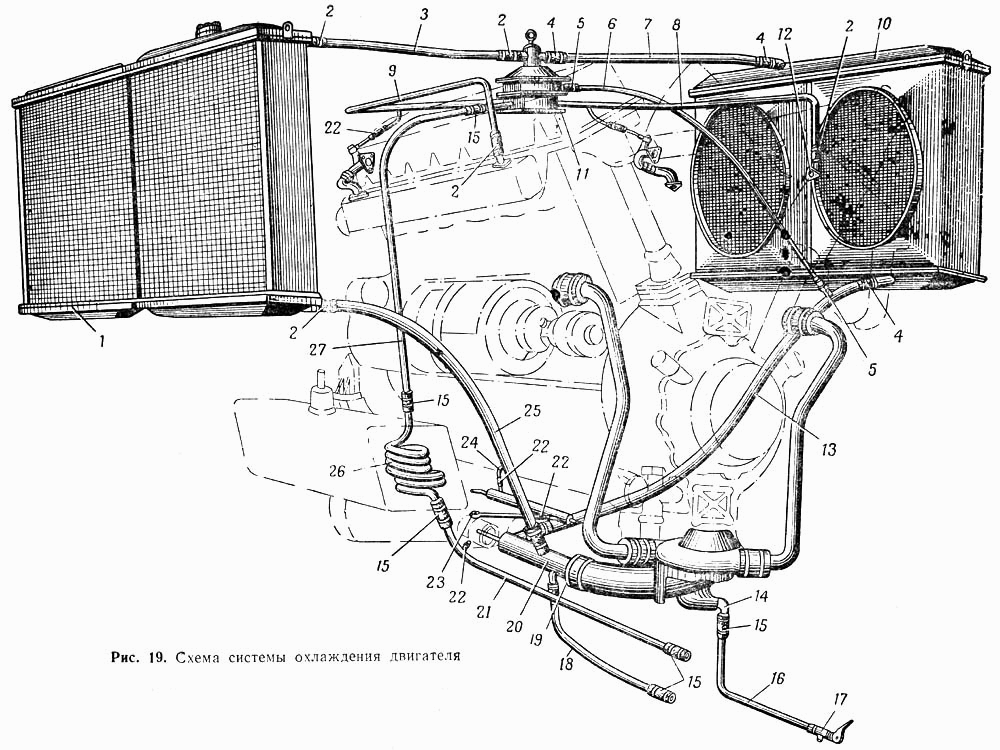

From the MAZ manual:

If you compare the MiniArt engine to the dashed drawings below taken from the manual I think you will work out most of the main details for the MAZ tractor. One major change from the MiniArt kit is that the air intake manifolds need to be reversed, left to right, to make the intakes face the front of the vehicle.

The only details that you need to salvage from behind the firewall of the T-34 engine are the air cleaner canisters and the starter motor - which now mounts on the engine.





All the items shown in these drawings are provided by the MiniArt T-34 kit with the acception of the front engine mount.
(The four engine mounts cast into the engine block remain but ARE NOT used to mount the engine in the MAZ.)
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 10:52 AM UTC

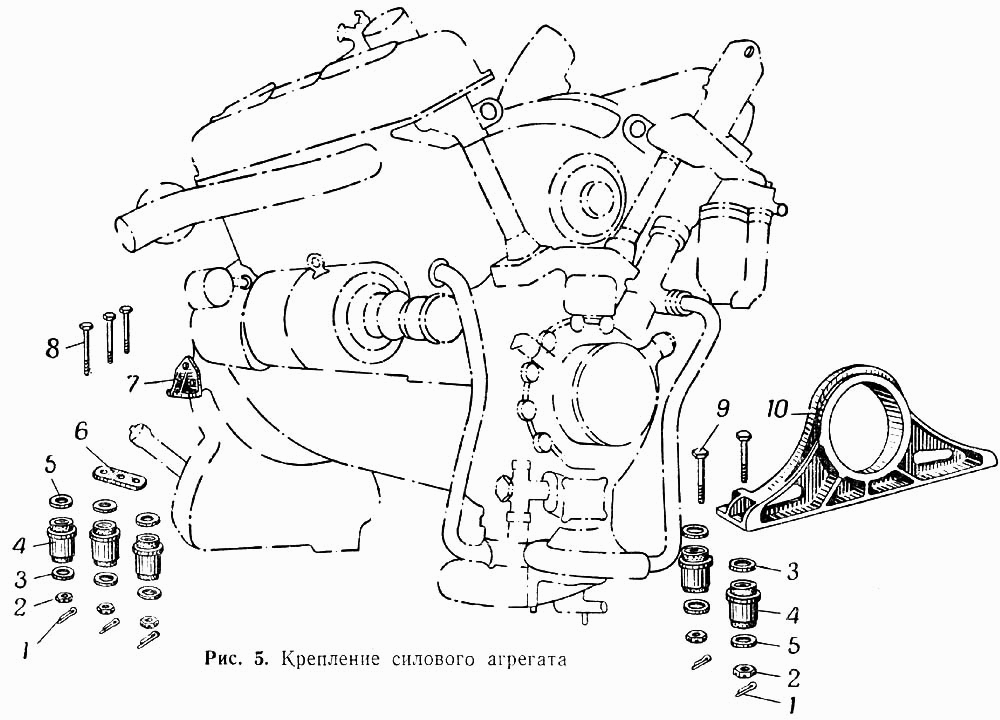

Forward engine mount:

This yoke mount design allows the vehicle frame to flex without passing this stress onto the engine block.
Armored76
_VISITCOMMUNITY
Bayern, Germany
Joined: September 30, 2013
KitMaker: 1,615 posts
AeroScale: 51 posts
Posted: Saturday, December 31, 2016 - 03:53 PM UTC
Great stuff, Michael! Thanks for sharing!
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 08:55 PM UTC
You are welcome Cristian - glad to help.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 09:00 PM UTC
The two challenges to converting this engine kit for use in the MAZ are:

#1 Construction of the large overdrive casing at the rear of the engine.

#2 Adding the somewhat complex mechanical drive for the four radiator fans (originally six) that comes off this casing.
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 09:24 PM UTC

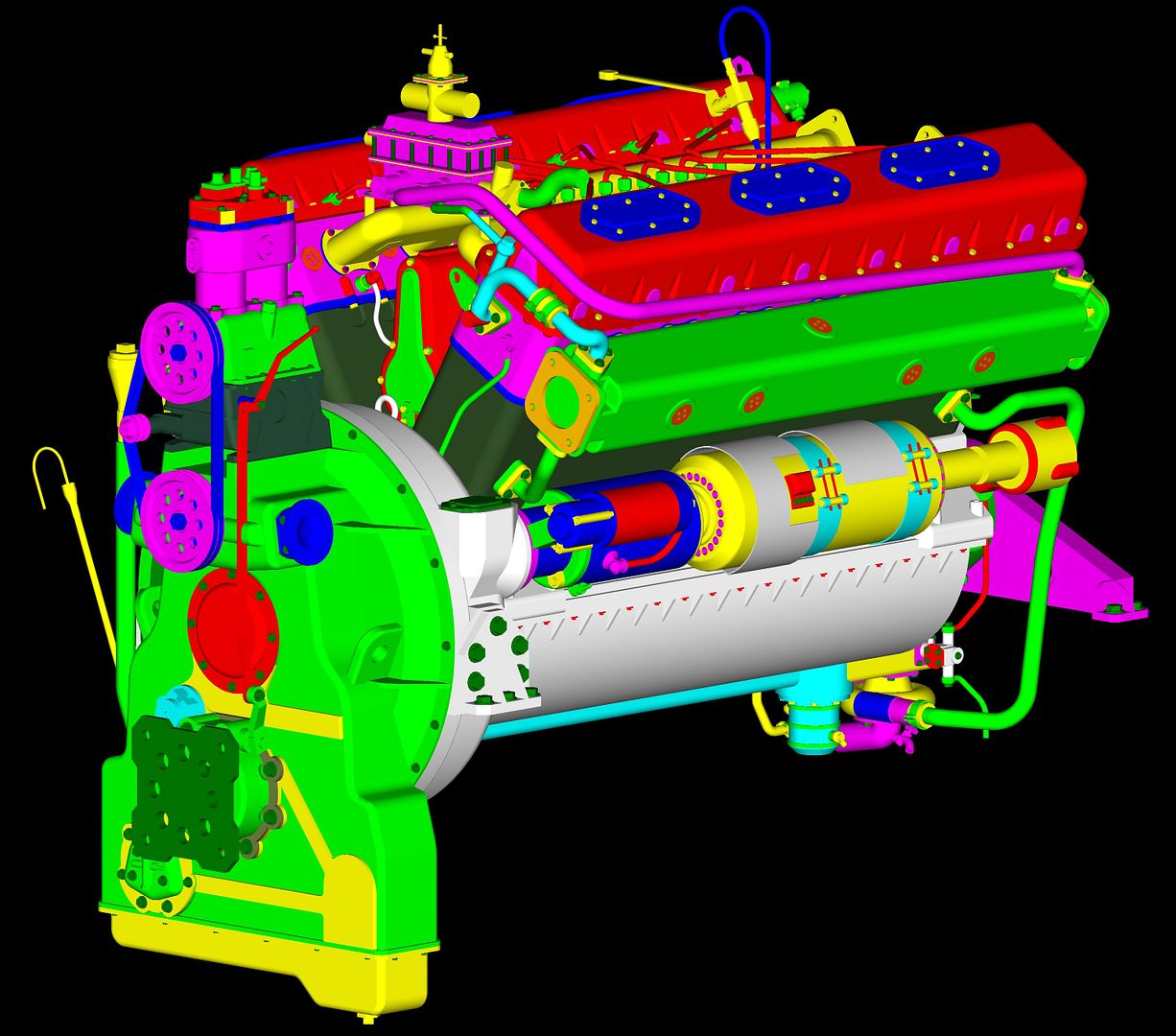

Rear mounted overdrive unit and air compressor:

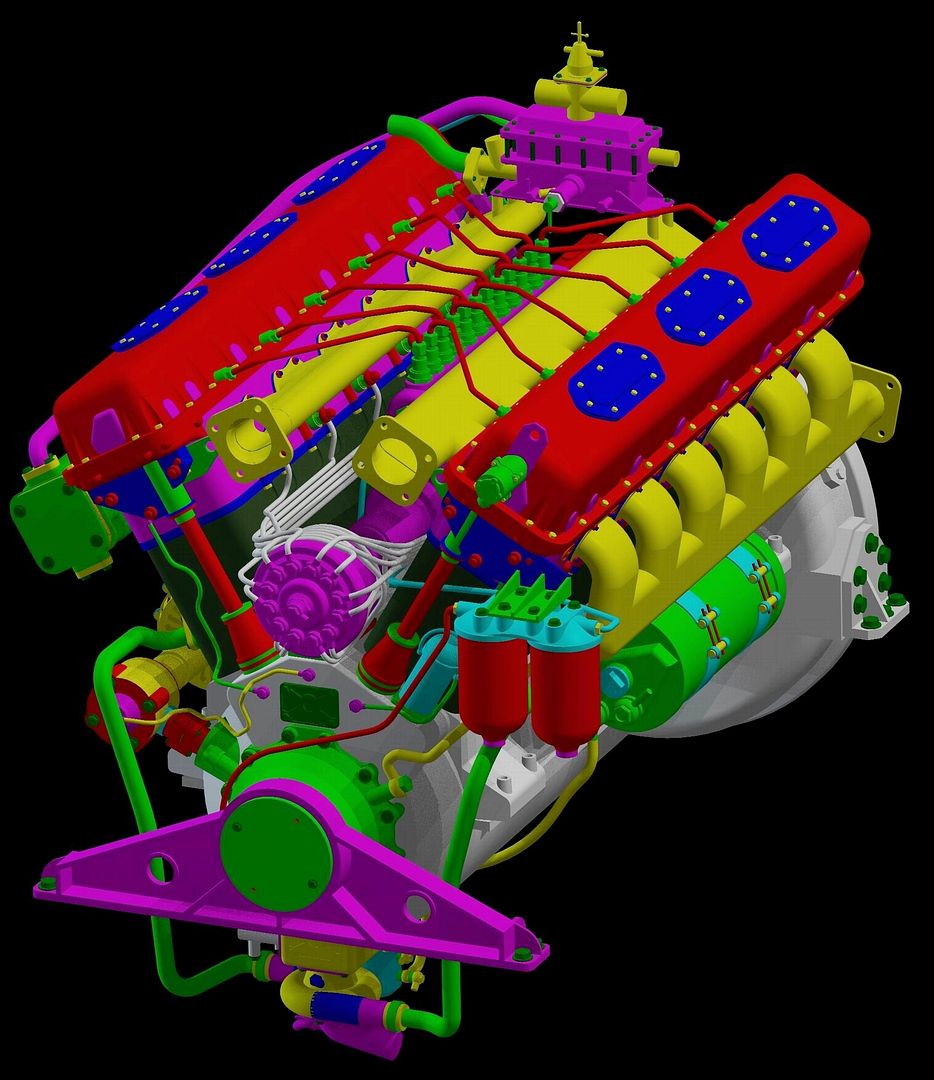

Front of engine:


Drawing credits go to -
http://www.bart300872.republika.pl
Used here for discussion purposes ONLY
165thspc
#521
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
AeroScale: 375 posts
Posted: Saturday, December 31, 2016 - 09:25 PM UTC

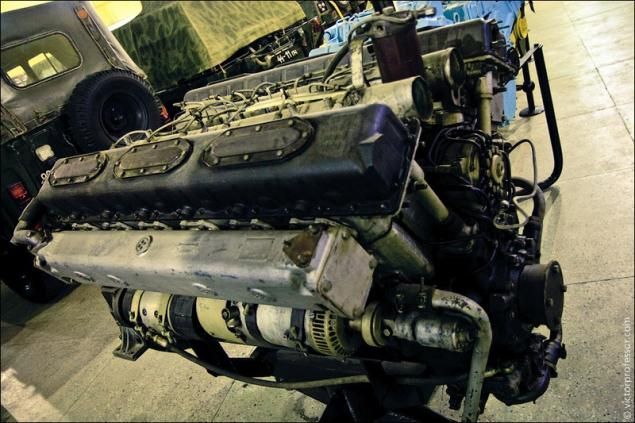

Again rear engine mounted overdrive unit:
Dragon164
#226
_VISITCOMMUNITY
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,909 posts
AeroScale: 508 posts
Posted: Sunday, January 01, 2017 - 04:36 AM UTC
Here Mike:

http://www.modellismopiu.it/modules/newbb_plus/viewtopic.php?topic_id=126834&forum=128

page 11

Cheers Rob.
